Linux configuration tool for Endgame Gear wireless mice (OP1w and XM2w)
The OP1w 4k v2 is the best mouse I’ve ever had. Its light (60g), wireless, low latency, but the best is the form and size. It’s small, and for some reason, the shape and weight distribution is just right. At the same time I ordered the OP1w I also ordered a Logitech G Pro X Superlight 2. While on paper the Superlight might even be better (longer battery life, big cooperation), its ambidextrous shape and desire to fit everyone’s hand and gripping style, makes it the inferior product.
As a software developer, I am also happy to see a (Windows) native configuration client for their mice in the year 2026, instead of slow, completely unnecessary, resource wasteful, JavaScript electron desktop application. Endgame Gear (egg) software is Windows MFC C++ application with a download size of 2MB. It consumes 3MB RAM, and almost no CPU time and vram while running. Compare that to the Logitech G Hub electron app, which uses 300MB memory, 100MB vram and consumes 30x cpu cycles while offering the exact same functionality.
The windows client binary isn’t obfuscated, and with Ghidra, Wireshark and USBPcap, is possible to statically analyze the binary as well as listen to the USB traffic while using the Windows client. With this data, it’s possible to reverse engineer the USB configuration protocol used by the Windows client, and write a Linux client using the same protocol from scratch.
Later, I’ve bought a OP1w v1 as comparison, to fill in the differences into the protocol and used the configuration tools for the XM2 to support these mice as well, based on the knowledge gained from the OP1w models.
Linux client
I used Opus 5 to analyze my pcap captures and compare and validate them against the ghidra analysis. You can find all
the details in the re folder here.
Opus 5 also wrote a C++ Qt GUI application (vole-gui) as well as a command line application (vole-cli) to set mouse
configuration parameters.
Additionally, the location of the mouse firmware within the windows executable is deterministic. Hence, (vole-fw)
extracts it, puts the mouse into its bootloader, and send the firmware. All it needs is the path of the downloaded
Windows firmware update executable from endgamegear.com. I’ve tested the firmware upgraded on OP1w (v1) and the OP1w v2
successfully.
vole-cli
vole-cli allows to read the current mouse status and set mouse parameters.
jzab@ fedora ~/Documents/code/endgame/vole/build 1010
$ ./vole-cli
usage: vole-cli <command> [args]
info device, firmware and battery
show current configuration
blob hexdump the raw 1024-byte config blob
listen print device notifications as they arrive
set cpi <1-4> <x> [y] CPI for one stage, in CPI units
set cpi-levels <1-4> number of active stages
set active-stage <1-4> which stage is selected
set lod <mm> lift-off distance; v1 offers 1 and 2,
v2 offers 0.7 - 2.0 in 0.1 steps
set angle-snap <on|off>
set ripple <on|off>
set angle-tuning <-30..30> degrees
set led-liftoff <on|off>
set polling <4000|2000|1000|1000ps|125>
1000ps = 1000 Hz with wireless power
saving; 125 = office mode
set motion-sync <on|off>
set glass-mode <on|off>
set max-sensor-fps <on|off> v2 models only
set motion-jitter <on|off> v1 models only
set slamclick <on|off>
set multiclick <on|off> v2 models only
set power-saving <1-120|off>
set deep-sleep <1-120|off>
set click-filter <button> <1-15|gx-safe|gx-speed>
set left-handed <on|off>
map <button> mouse <left|right|middle|back|forward>
map <button> key <mods> <usage> mods: bitmask, usage: HID code
map <button> wheel <up|down>
map <button> consumer <usage> e.g. 0xEA = volume down
map <button> cpi-cycle cycle through the CPI stages
map <button> cpi <x> [y] fixed CPI, in CPI units
map <button> none
pair re-pair the mouse to the dongle
factory-reset restore the mouse to defaults
buttons: left right middle back forward special wheel-up wheel-down
SPDT modes apply to left and right only.
jzab@ fedora ~/Documents/code/endgame/vole/build 1011
$ ./vole-cli info
Device : Endgame Gear HS Dongle (wireless)
Model : OP1w 4k
Path : /dev/hidraw1
Dongle FW : 1.01
Mouse FW : 1.08
Battery : 65 %
Signal : 39
jzab@ fedora ~/Documents/code/endgame/vole/build 1012
$ ./vole-cli show
CPI stages : 400, [800], 1600, 3200
CPI levels : 4
LOD : 1.0 mm
Angle snap : off
Ripple ctrl : off
Angle tuning: -128 deg
LED liftoff : on
Polling : 1000 Hz
Motion sync : off
Glass mode : off
Max sensor : off
MotionJitter: on
Slamclick : on
Multiclick : off
Power saving: 1 min
Deep sleep : 3 min
Left-handed : off
Click filter:
Left 8
Right 8
Middle 8
Back 8
Forward 8
Buttons :
Left Left click
Right Right click
Middle Middle click
Back Back
Forward Forward
Special CPI cycle
Wheel up Wheel up
Wheel down Wheel down
jzab@ fedora ~/Documents/code/endgame/vole/build 1013
$
vole-gui

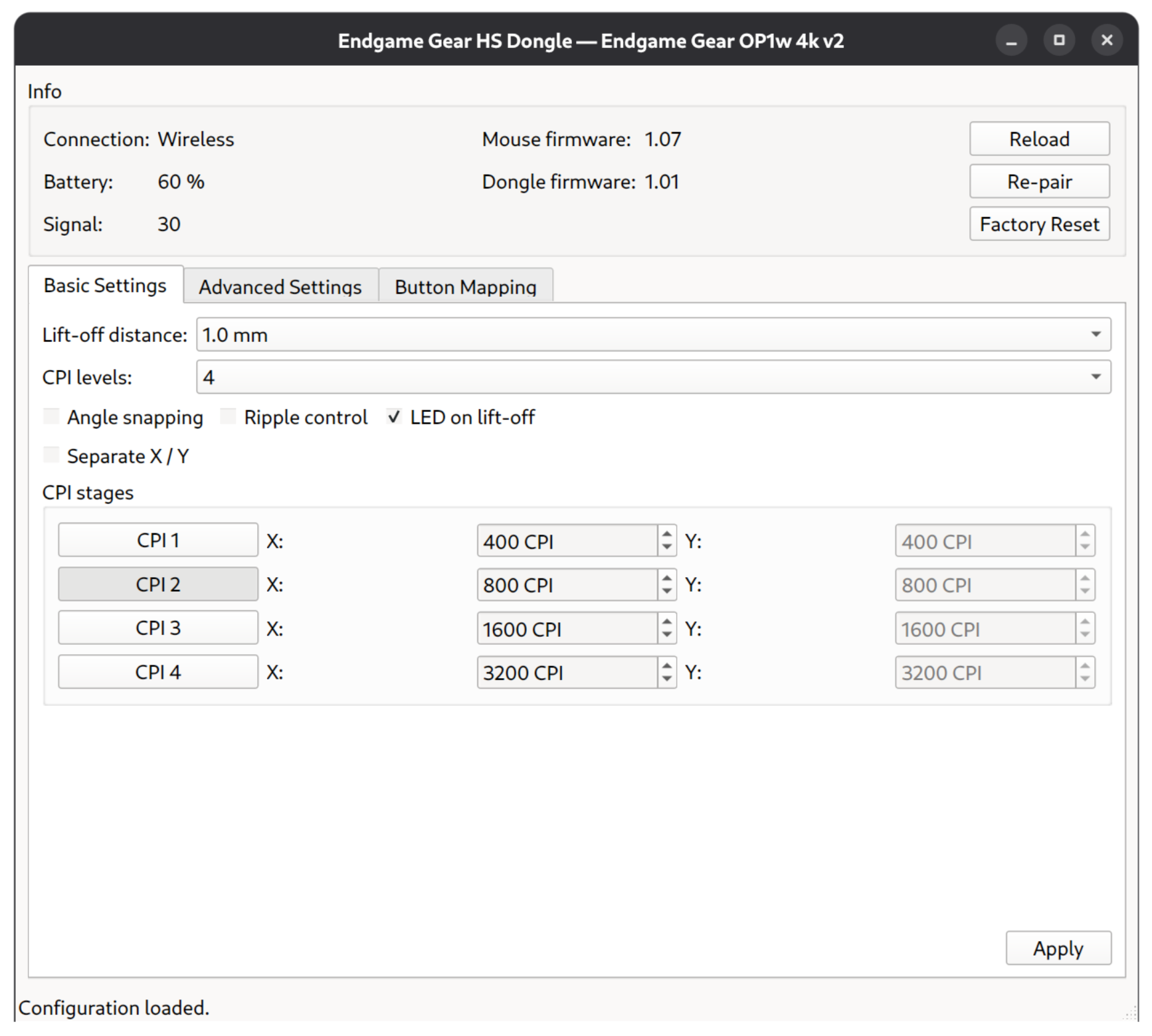

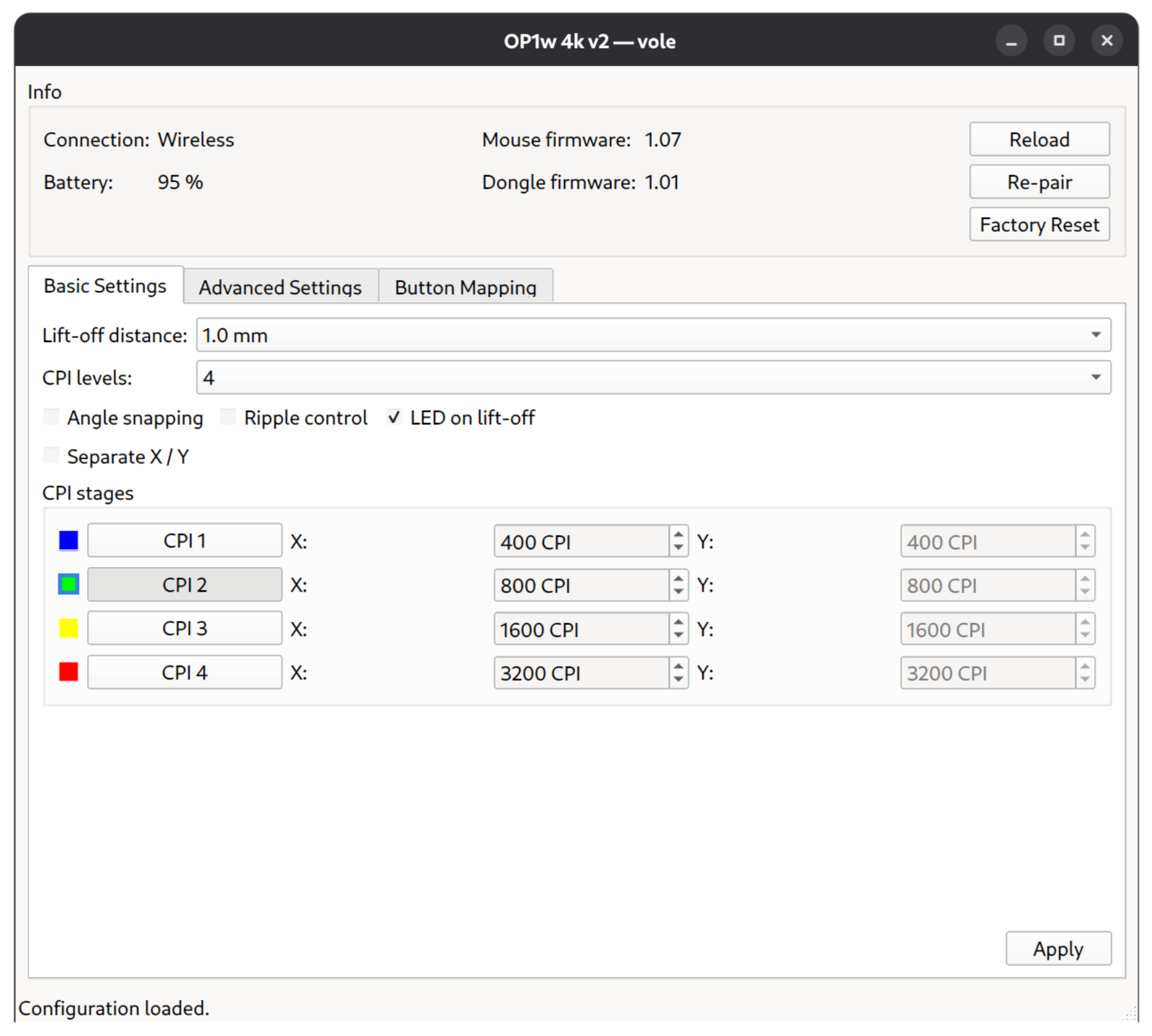

The GUI is based on the original Windows client developed by egg. Here is a screenshot, running in GNOME:
vole-fw
vole-fw allows to update the mouses firmware based on the Windows firmware update executable.
jzab@ fedora ~/Documents/code/endgame/vole/build 1027
$ ./vole-fw flash Endgame_Gear_OP1w_4k_Firmware_Updater_v1.10-660998ec.exe
File : Endgame_Gear_OP1w_4k_Firmware_Updater_v1.10-660998ec.exe
Source : firmware resource FWFILE/134 inside the updater, at offset 0x1D29E8
Declares : OP1w 4k
Image : 209920 bytes, 205 blocks, entropy 7.9788
sha256 : ad612be22f77907162429e1053a6fad53c91bd59a7f0916c9715970e56aa2b27
Target : OP1w 4k
REHEARSAL — nothing will be written. Add --yes to do it for real.
rehearsal: report 0xA0 reaches the mouse, so the transport is sound. Everything past this point needs the bootloader, which only a real run can enter — re-run with --yes.
Rehearsal finished. Nothing was written.
jzab@ fedora ~/Documents/code/endgame/vole/build 1028
$ ./vole-fw flash Endgame_Gear_OP1w_4k_Firmware_Updater_v1.10-660998ec.exe --yes
File : Endgame_Gear_OP1w_4k_Firmware_Updater_v1.10-660998ec.exe
Source : firmware resource FWFILE/134 inside the updater, at offset 0x1D29E8
Declares : OP1w 4k
Image : 209920 bytes, 205 blocks, entropy 7.9788
sha256 : ad612be22f77907162429e1053a6fad53c91bd59a7f0916c9715970e56aa2b27
Target : OP1w 4k
The update ends with a factory reset, exactly as the vendor's updater does:
the mouse loses its settings. To keep a copy, plug the dongle back in first
and run `vole-cli blob`.
asking the mouse to reboot into its bootloader
waiting for the bootloader to appear
checking the transport with the vendor's echo test (writes nothing)
erasing and starting — the device holds this reply while it erases
block 205 / 205
waiting for the mouse to come back
the mouse reports firmware 1.10, the same version as before — expected if you re-flashed the version it already had
sent the factory reset the vendor tool sends
Firmware written. Unplug the cable, put the dongle back in, and check the
version with `vole-cli info`.
jzab@ fedora ~/Documents/code/endgame/vole/build 1029
$ ./vole-cli info
Device : OP1w 4k Wireless Gaming Mouse (wired)
Model : OP1w 4k
Path : /dev/hidraw1
Mouse FW : 1.10
Battery : 100 %
Signal : 117
jzab@ fedora ~/Documents/code/endgame/vole/build 1030
$
Source code
You can find the source code at github.com: vole
How to build
Check out the code, e.g. git clone https://github.com/johanneszab/vole.git
Debian based (apt)
sudo apt install build-essential cmake pkg-config libhidapi-dev qt6-base-dev
cmake -B build -S . -DCMAKE_BUILD_TYPE=Release
cmake --build build -j
cmake --install build --prefix ~/.local # user installation
#sudo cmake --install # for system-wide installation
Red hat based (dnf)
sudo dnf install @c-development @development-tools
sudo dnf install build-essential cmake pkgconf-pkg-config hidapi-devel qt6-qtbase-devel
cmake -B build -S . -DCMAKE_BUILD_TYPE=Release
cmake --build build -j
cmake --install build --prefix ~/.local # user installation
#sudo cmake --install # for system-wide installation
The GUI is optional — if Qt 6 isn’t found, only vole-cli is built. The binaries are in the build folder.
